13.5 Using behaviors for debugging
Some behaviors automatically execute complex code to modify objects within the scenegraph, so care must be taken to ensure that behavior processing does not bog down application performance. With careful design and knowledge of some of the limitations, behaviors can be a powerful asset in quickly developing or prototyping application logic.
By the end of this chapter you should have a good sense of how to develop your own behaviors. By mixing and matching your own and the built-in behaviors, you should be able to design your application logic within Java 3D’s behavior model.
There are occasions when the built-in behaviors do not provide enough functionality to capture the logic of your application. By creating your own classes derived from Behavior, you can easily integrate your application logic into Java 3D’s behavior processing framework.

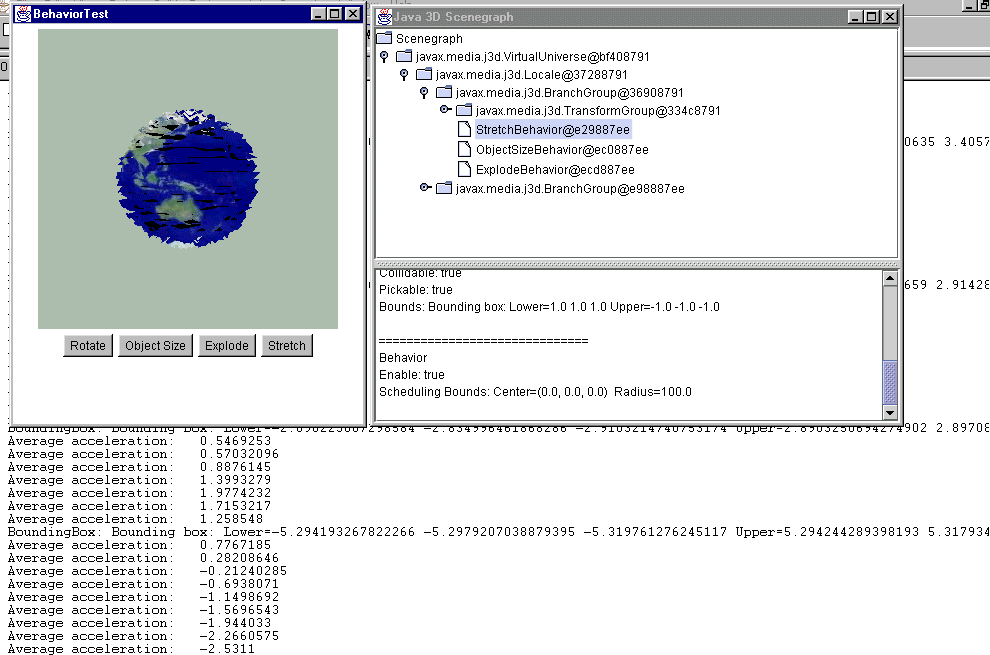

The BehaviorTest example application uses four behaviors: the built-in RotationInterpolator and three custom behaviors of varying complexity: ObjectSizeBehavior, ExplodeBehavior, and StretchBehavior. See figure 13.1.
ObjectSizeBehavior is the simplest, and it calculates the smallest BoundingBox that encloses a Shape3D’s geometry. The BoundingBox is recalculated every 20 frames, and the size of the BoundingBox is written to standard output. Note that the basic anatomy of a behavior described in section 11.3 is adhered to here.
ExplodeBehavior is more complex. Given a Shape3D object, it explodes the object after a specified number of milliseconds by rendering the Shape3D as points and modifying the coordinates within the Shape3D’s GeometryArray. The transparency of the object is gradually increased so that the object fades into the background.
StretchBehavior is the most complex of the custom behaviors. It operates upon a specified GeometryArray and animates the vertices within the array as if they were weights attached by springs to the origin. StretchBehavior listens for key presses and increases the acceleration of each vertex when a key is pressed. The increased acceleration causes the vertices to move away from the origin, which causes an increase in the restraining force from the spring. The vertices oscillate back and forth, finally coming to rest at their original position.
The ObjectSizeBehavior class implements a simple behavior that calculates and prints the size of an object based on the vertices in its GeometryArray.
| From ObjectSizeBehavior.java |
class ObjectSizeBehavior extends Behavior
{
//the wake up condition for the behavior
protected WakeupCondition m_WakeupCondition = null;
//the GeometryArray for the Shape3D that we are querying
protected GeometryArray m_GeometryArray = null;
//cache some information on the model to save reallocation
protected float[] m_CoordinateArray = null;
protected BoundingBox m_BoundingBox = null;
protected Point3d m_Point = null;;
public ObjectSizeBehavior( GeometryArray geomArray )
{
//save the GeometryArray that we are modifying
m_GeometryArray = geomArray;
//set the capability bits that the behavior requires
m_GeometryArray.setCapability(
GeometryArray.ALLOW_COORDINATE_READ );
m_GeometryArray.setCapability(
GeometryArray.ALLOW_COUNT_READ );
//allocate an array for the coordinates
m_CoordinateArray =
new float[ 3 * m_GeometryArray.getVertexCount() ];
//create the BoundingBox used to calculate the size of the object
m_BoundingBox = new BoundingBox();
//create a temporary point
m_Point = new Point3d();
//create the WakeupCriterion for the behavior
WakeupCriterion criterionArray[] = new WakeupCriterion[1];
criterionArray[0] = new WakeupOnElapsedFrames( 20 );
//save the WakeupCriterion for the behavior
m_WakeupCondition = new WakeupOr( criterionArray );
}
public void initialize()
{
//apply the initial WakeupCriterion
wakeupOn( m_WakeupCondition );
}
public void processStimulus( java.util.Enumeration criteria )
{
while( criteria.hasMoreElements() )
{
WakeupCriterion wakeUp =
(WakeupCriterion) criteria.nextElement();
//every N frames, recalculate the bounds for the points
//in the GeometryArray
if( wakeUp instanceof WakeupOnElapsedFrames )
{
//get all the coordinates
m_GeometryArray.getCoordinates( 0, m_CoordinateArray );
//clear the old BoundingBox
m_BoundingBox.setLower( 0,0,0 );
m_BoundingBox.setUpper( 0,0,0 );
//loop over every vertex and combine with the BoundingBox
for( int n = 0; n < m_CoordinateArray.length; n+=3 )
{
m_Point.x = m_CoordinateArray[n];
m_Point.y = m_CoordinateArray[n+1];
m_Point.z = m_CoordinateArray[n+2];
m_BoundingBox.combine( m_Point );
}
System.out.println( "BoundingBox: " + m_BoundingBox );
}
}
//assign the next WakeUpCondition, so we are notified again
wakeupOn( m_WakeupCondition );
}
}
To use the behavior one could write:
Sphere sphere = new Sphere( 3, Primitive.GENERATE_NORMALS | Primitive.GENERATE_TEXTURE_COORDS, 32, app );
m_SizeBehavior = new ObjectSizeBehavior( (GeometryArray) sphere.getShape().getGeometry() );
m_SizeBehavior.setSchedulingBounds( getApplicationBounds() );
objRoot.addChild( m_SizeBehavior );This code snippet creates the behavior and passes the geometry for a Sphere to the constructor, sets the scheduling bounds for the behavior and adds it to the scenegraph. Do not forget to add the behavior to the scenegraph, or it will not get scheduled.
Output from the behavior is simply:
Bounding box: Lower=-5.048 -5.044 -5.069 Upper=5.040 5.060 5.069
Bounding box: Lower=-5.048 -5.044 -5.069 Upper=5.040 5.060 5.069
Bounding box: Lower=-5.048 -5.044 -5.069 Upper=5.040 5.060 5.069The behavior verifies the size of the geometry for the Shape3D every 20 frames. Note that the behavior follows the general anatomy of a behavior as was described in section 11.3.
When writing a behavior you should be very aware of the computational cost of the processing within the processStimulus method and how often the behavior is likely to be invoked. The ObjectSizeBehavior’s processStimulus method is called once every 20 frames, so any processing that is performed is going to have a fairly big impact on application performance. Whenever possible, avoid creating Objects (using the new operator) within the processStimulus method if it is going to be invoked frequently. Any Objects created by the behavior using the new operator and not assigned to a member variable will have to be garbage-collected. Not only is creating objects a relatively costly operation, but garbage collection can cause your application to noticeably pause during rendering.
For example, instead of creating a new BoundingBox, which would have had size 0, a single BoundingBox object was resized using:
m_BoundingBox.setLower( 0,0,0 );
m_BoundingBox.setUpper( 0,0,0 );With Java 3D in general, you should avoid burning (allocate, followed by garbage-collect) Objects as much as possible, and minimize the work that the garbage collector has to perform.
The constructor for the ExplodeBehavior is as follows:
public ExplodeBehavior( Shape3D shape3D,
int nElapsedTime, int nNumFrames,
ExplosionListener listener )The behavior attaches to the Shape3D specified and explodes the object after nElapsedTime milliseconds (figure 13.2). The explosion animation takes nNumFrames to complete, and, once complete, a notification is passed to the caller via an ExplosionListener interface method.

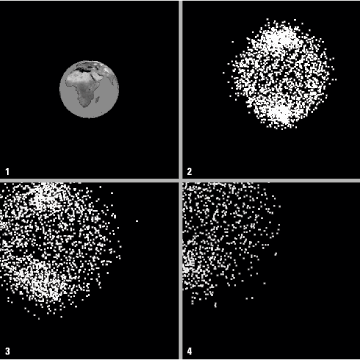

To model the simple explosion, the behavior switches the Shape3D’s appearance to rendering in points (by modifying the PolygonAttributes) and sets the point size (using PointAttributes). The transparency of the Shape3D is then set using TransparencyAttributes. The vertices of the Shape3D’s geometry are then moved away from the origin with a slight random bias in the x+, y+, and z+ direction.
The ExplodeBehavior moves through the following life cycle:
WakeUp condition is set to be WakeupOnElapsedTime( n milliseconds ).
processStimulus is called after n milliseconds.
Appearance attributes are modified for the Shape3D.
WakeUp condition is set to WakeupOnElapsedFrames( 1 ).
processStimulus is called after every frame.
GeometryArray’s vertex coordinates is modified.
WakeUp condition to WakeupOnElapsedFrames( 1 )
Shape3D Appearance and coordinates.
ExplosionListener that the behavior is done.
setEnable( false ) to disabled the behavior.
The processStimulus method for the ExplodeBehavior is as follows.
| From ExplodeBehavior.java |
public void processStimulus( java.util.Enumeration criteria )
{
while( criteria.hasMoreElements() )
{
WakeupCriterion wakeUp =
(WakeupCriterion) criteria.nextElement();
if( wakeUp instanceof WakeupOnElapsedTime )
{
//we are starting the explosion,
//apply the appearance changes we require
PolygonAttributes polyAttribs =
new PolygonAttributes( PolygonAttributes.POLYGON_POINT,
PolygonAttributes.CULL_NONE, 0 );
m_Shape3D.getAppearance().setPolygonAttributes( polyAttribs );
PointAttributes pointAttribs = new PointAttributes( 3, false );
m_Shape3D.getAppearance().setPointAttributes( pointAttribs );
m_Shape3D.getAppearance().setTexture( null );
m_TransparencyAttributes =
new TransparencyAttributes( TransparencyAttributes.NICEST, 0 );
m_TransparencyAttributes.setCapability(
TransparencyAttributes.ALLOW_VALUE_WRITE );
m_Shape3D.getAppearance().setTransparencyAttributes(
m_TransparencyAttributes );
}
else
{
//we are mid explosion, modify the GeometryArray
m_nFrameNumber++;
m_GeometryArray.getCoordinates( 0, m_CoordinateArray );
m_TransparencyAttributes.
setTransparency( ((float) m_nFrameNumber) /
((float) m_nNumFrames) );
m_Shape3D.getAppearance().
setTransparencyAttributes( m_TransparencyAttributes );
for( int n = 0; n < m_CoordinateArray.length; n+=3 )
{
m_Vector.x = m_CoordinateArray[n];
m_Vector.y = m_CoordinateArray[n+1];
m_Vector.z = m_CoordinateArray[n+2];
m_Vector.normalize();
m_CoordinateArray[n] += m_Vector.x * Math.random() +
Math.random();
m_CoordinateArray[n+1] += m_Vector.y * Math.random() +
Math.random();
m_CoordinateArray[n+2] += m_Vector.z * Math.random() +
Math.random();
}
//assign the new coordinates
m_GeometryArray.setCoordinates( 0, m_CoordinateArray );
}
}
if( m_nFrameNumber < m_nNumFrames )
{
//assign the next WakeUpCondition, so we are notified again
wakeupOn( m_FrameWakeupCondition );
}
else
{
//we are at the end of the explosion
//reapply the original appearance and GeometryArray coordinates
setEnable( false );
m_Shape3D.setAppearance( m_Appearance );
m_GeometryArray.setCoordinates( 0, m_OriginalCoordinateArray );
m_OriginalCoordinateArray = null;
m_GeometryArray = null;
m_CoordinateArray = null;
m_TransparencyAttributes = null;
//if we have a listener notify them that we are done
if( m_Listener != null )
wakeupOn( m_Listener.onExplosionFinished( this, m_Shape3D ) );
}
StretchBehavior implements a more complex behavior. The behavior modifies the coordinates within a GeometryArray based on simulated forces applied to the geometric model. Forces are modeled as springs from the origin to every vertex. Every vertex has a mass and an applied force, and hence an acceleration. Pressing a key will increase the acceleration at each vertex, upsetting the force equilibrium at vertices. The model will then start to oscillate in size under the influence of the springs. Because there are variations in mass between vertices, the model will distort slightly as it oscillates—the heavier vertices displacing less than the lighter ones. A damping effect is modeled by losing a portion of the vertex acceleration after each iteration. See figure 13.3.
| NOTE |
This is a computationally expensive behavior. |
StretchBehavior responds to two WakeUp conditions: after every frame and after a key press. The WakeUp conditions for the behavior are specified as follows:
//create the WakeupCriterion for the behavior
WakeupCriterion criterionArray[] = new WakeupCriterion[2];
criterionArray[0] = new WakeupOnAWTEvent( KeyEvent.KEY_PRESSED );
criterionArray[1] = new WakeupOnElapsedFrames( 1 );
//save the WakeupCriterion for the behavior
m_WakeupCondition = new WakeupOr( criterionArray );As usual, the WakeupCriterion is passed to the behavior inside the initialize method:
public void initialize()
{
//apply the initial WakeupCriterion
wakeupOn( m_WakeupCondition );
}The processStimulus method of the behavior, which is called on every frame and in response to a key press, performs all the basic physics calculations and updates the positions of the coordinates within the GeometryArray.
| From StretchBehavior.java |
public void processStimulus( java.util.Enumeration criteria )
{
//update the positions of the vertices—regardless of criteria
float elongation = 0;
float force_spring = 0;
float force_mass = 0;
float force_sum = 0;
float timeFactor = 0.1f;
float accel_sum = 0;
//loop over every vertex and calculate its new position
//based on the sum of forces due to acceleration and the spring
for( int n = 0; n < m_CoordinateArray.length; n+=3 )
{
m_Vector.x = m_CoordinateArray[n];
m_Vector.y = m_CoordinateArray[n+1];
m_Vector.z = m_CoordinateArray[n+2];
//use squared lengths, as sqrt is costly
elongation = m_LengthArray[n/3] - m_Vector.lengthSquared();
//Fspring = k*Le
force_spring = m_kSpringConstant * elongation;
force_mass = m_AccelerationArray[n/3] * m_MassArray[n/3];
//calculate resultant force
force_sum = force_mass + force_spring;
//a = F/m
m_AccelerationArray[n/3] = (force_sum / m_MassArray[n/3]) *
m_kAccelerationLossFactor;
accel_sum += m_AccelerationArray[n/3];
m_Vector.normalize();
//apply a portion of the acceleration as change
//in coordinate based on the normalized vector
//from the origin to the vertex
m_CoordinateArray[n] +=
m_Vector.x * timeFactor * m_AccelerationArray[n/3];
m_CoordinateArray[n+1] +=
m_Vector.y * timeFactor * m_AccelerationArray[n/3];
m_CoordinateArray[n+2] +=
m_Vector.z * timeFactor * m_AccelerationArray[n/3];
}
//assign the new coordinates
m_GeometryArray.setCoordinates( 0, m_CoordinateArray );
while( criteria.hasMoreElements() )
{
WakeupCriterion wakeUp =
(WakeupCriterion) criteria.nextElement();
//if a key was pressed increase the acceleration at the vertices
//a little to upset the equilibrium
if( wakeUp instanceof WakeupOnAWTEvent )
{
for( int n = 0; n < m_AccelerationArray.length; n++ )
m_AccelerationArray[n] += 0.3f;
}
else
{
//otherwise, print the average acceleration
System.out.print( "Average acceleration:\t"
+ accel_sum/m_AccelerationArray.length + "\n" );
}
}
//assign the next WakeUpCondition, so we are notified again
wakeupOn( m_WakeupCondition );
}

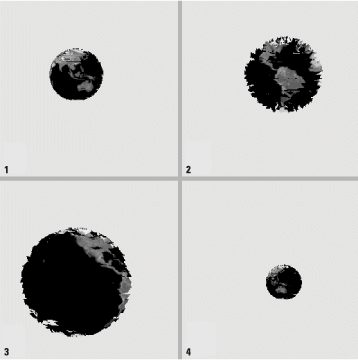

After pressing a key has disturbed the equilibrium of the model, it can take a considerable length of time to return to equilibrium. In figure 13.4 the model took over 500 frames to stabilize.
A library of custom Behavior classes can be a very useful debugging aid, as they can be quickly added and removed from the scenegraph as needed. It is a simple step to conditionally add the debugging behaviors for development builds and remove them for production builds. For example, I have used the following two behaviors extensively:
BoundsBehavior is attached to a scenegraph Node and creates a wire frame ColorCube or Sphere to graphically represent the Bounds (BoundingBox or BoundingSphere) for the object at runtime.
FpsBehavior can be added anywhere in the scenegraph and writes the rendered FPS to the standard output window.
Both behaviors can be found in the org.selman.java3d.book package and are illustrated in the BehaviorTest example application.
A useful method of displaying the rendered FPS in a Java 3D application is to add the following Behavior class anywhere within the scenegraph. A behavior-based calculation is easier to add and remove to a program than overriding the Canvas3D postSwap method.
| NOTE |
If accuracy is paramount, postSwap may provide more accurate results because Behavior processing typically runs on an independent thread to rendering. |
| From FpsBehavior |
//this class implements a simple behavior
//that output the rendered Frames Per Second.
public class FpsBehavior extends Behavior
{
//the wake up condition for the behavior
protected WakeupCondition m_WakeupCondition = null;
protected long m_StartTime = 0;
private final int m_knReportInterval = 100;
public FpsBehavior()
{
//save the WakeupCriterion for the behavior
m_WakeupCondition =
new WakeupOnElapsedFrames( m_knReportInterval );
}
public void initialize()
{
//apply the initial WakeupCriterion
wakeupOn( m_WakeupCondition );
}
public void processStimulus( java.util.Enumeration criteria )
{
while( criteria.hasMoreElements() )
{
WakeupCriterion wakeUp =
(WakeupCriterion) criteria.nextElement();
//every N frames, report the FPS
if( wakeUp instanceof WakeupOnElapsedFrames )
{
if( m_StartTime > 0 )
{
final long interval = System.currentTimeMillis() - m_StartTime;
System.out.println( "FPS: " + (double) m_knReportInterval / (
interval / 1000.0));
}
m_StartTime = System.currentTimeMillis();
}
}
//assign the next WakeUpCondition, so we are notified again
wakeupOn( m_WakeupCondition );
}
}
The BehaviorTest example allows many behaviors to affect a single texture-mapped Sphere. RotationInterpolator rotates the entire scene, ObjectSizeBehavior prints the size of the Sphere every 20 frames, ExplodeBehavior explodes the Sphere every 10 seconds, StretchBehavior models the vertices of the Sphere as weights attached to springs anchored at the origin, and BoundsBehavior tracks the Bounds of the Sphere.
Tying all these behaviors together into a single application allows complex application logic to be built up from relatively simple building blocks. The interactions between the behaviors can be explored by running the example and switching the behaviors on and off using the AWT buttons at the bottom of the Frame.
I hope the examples presented in this section have demystified Java 3D’s behaviors. You should now start breaking down your application logic into good, reusable, OO chunks and distributing them across your scenegraph. You should aim to empower your scenegraph objects with the abilities to detect, process, and respond to user interactions.
Keep a careful eye on application performance at all times, because excessive behavior processing can slow your frame rate or make your application appear unresponsive. Do not be afraid of writing more complex behaviors that can affect whole classes of objects within your scenegraph. In this way you may be able to limit the number of behaviors in the scenegraph and use a manager design philosophy, where each behavior manages a given class of objects within the scenegraph, instead of attaching single instances of a behavior to a single object.
